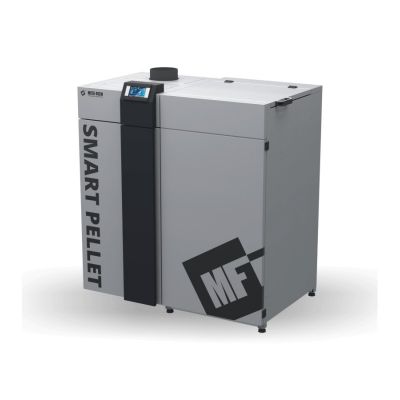

Boiler SMART PELLET WF

Boiler series SMART PELLET WF 5th class is a device central heating with automatic fuel delivery type incinerating fuel pellets. Boiler is made from hig quality 6mm steel boiler. SMART PELLET has certificate ECO DESIGN and ecological safety sign 5 classs (according to DIN EN 303-5: 2012).

pellet

Possibility to adjust flue output

Construction of boiler allows mounting flue outlet from above or from behind. Applied constructional solution of boiler body allows to change location of flue outlet. Thanks to this, furnace has increased installation possibilities. Flue outlet can be set according to conditions in boiler room and location of chimney hole. This feature of boiler makes it a universal device suitable for most boiler rooms.

pellet

PLATINIUM Controller

PLATINIUM Controller placed in SMART PELLET controls combustion process in boiler with a lighter. Controller supports mixing valves, pumps, thermostats, buffer tanks and allows you to edit all combustion parameters. Controller is connected to ecoNET platform, which allows you to control heating installation using mobile device or computer.

Technical parameters

PARAMETERS SI UNIT MODEL BOILER
    SMART PELLET WF 16 SMART PELLET WF 20 SMART PELLET WF 25 SMART PELLET WF 30
Nominal thermal power [kW] 16 20 25 30
Boiler power range [kW] 4,8-16 6-20 7,5-25 9-30
Maximum allowed to warm [m2] 72 - 240 90 - 300 112,5 - 375 135 - 450
Heating surface [m2] 1,63 2,00 2,60 3,08
Water capacity [L] 48 60 71 80
Maximum operating pressure [bar] 3 3 3 3
The maximum operating temperature [°C] 85 85 85 85
Test pressure [bar] 4,5 4,5 4,5 4,5
Ecodesign – + + + +
Class boiler – 5 5 5 5
Boiler efficiency [%] ≤90 ≤90 ≤90 ≤90
Fuel tank capacity [L] 160 175 200 290
Fuel tank capacity [kg] 96 105 120 174
Fuel [-] pellet Φ6-8
Electrical connection – ~230V; 50Hz
Power consumption [IN] 115 115 115 115
Power consumption (temporary during firing) [IN] 415 415 415 415
Setting range temperature controller [°C] 60-85 (co 1°C)
Required chimney draft [Pa] 24 25 24 24
Computational flow resistance Dt [10K] [mbar] 5,47 9,74 12,33 15,8
Computational flow resistance Dt [20K] [mbar] 1,36 2,43 3,80 4,3
Weight of boiler [kg] 340 360 405 440

Dimensions Cauldron

MF SMART PELLET
TYPE SMART PELLET WF 16 SMART PELLET WF 20 SMART PELLET WF 25 SMART PELLET WF 30
A 1150 1150 1200 1200
B1 530 530 580 580
B2 615 615 615 615
C1 1345 1400 1400 1490
C2 1295 1350 1350 1450
D1 770 840 930 955
D2 646 716 806 806
E 712 716 806 806
F1/F1' 520/1100 590/1160 680/1160 665/1255
F2 140 140 140 140
F3 115 115 115 115
F4 1100 1160 1160 1255
G1 160 160 160 180
G2 1 1/2 1 1/2 1 1/2 1 1/2
G3 3/4 3/4 3/4 3/4
G4 1 1/2 1 1/2 1 1/2 1 1/2
H 30 30 30 30
5 years warranty

5 years warranty

Steel boiler 6 mm

Approved high-grade steel boiler 6 mm

pellet burner

PPW self cleaning pellet burner

ceramic igniter

Automatic ceramic igniter

Fuzzy Logic PID

Fuzzy Logic PID

Weather control

Weather control


expansion module

Expansion module

CO1 one mixing circuit

CO1 one mixing circuit with room thermostat

3 pumps

CO1 pump, DHW, additional

Internet module

Internet module

summer / winter

Operating mode summer / winter

LAMBDA

Lambda probe
